Customized Request for Farming Sprayer Drone Recommend Spray Speed 6-8m/S

Ask Lasest Price
Supply Ability :	10000unit/Year
Price :	Negotiable
Delivery Time :	https://ttadrone.en.made-in-china.com/
Payment Terms :	LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Add to Cart

Product Details
Company Profile

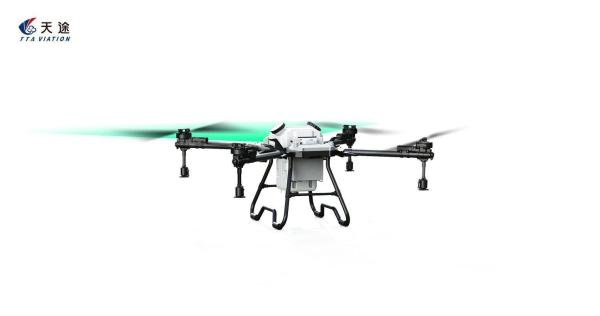

Customized Request for Farming Sprayer Drone Recommend Spray Speed 6-8m/S

Sprayer Drone Recommend Spray Speed 6-8m/s Spray Width 6-12M Dustproof UAV Waterproof Agricultural Sprayer Aircraft For Farming

Name of commodity	Image	Remarks
4 rotors UAV		fuselage, arms, motors, propellers, electronic speed controllers
Spraying equipment		Micro pump / Flow meter / pesticide tank / nozzles/
APAR(Active Phased Array Radar)		360-degree obstacle avoidance radar

Water Pump		2pcs
Package		Carton Box
Remote controller		5.5-inch HD high brightness display Single-axis FPV
Battery/2pcs included in package		1pc battery/flight 2 pcs in one CTN: 37.53037 cm (LWH) G.W:28Kg
18S Charger		Dual channels 37.532.531.5cm(LWH) G.W: 13Kg
Assemble tools		1 bag

Supply Ability

Supply Ability 500set/sets per Month

Packaging & Delivery

Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen

Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

PRODUCTION DESCRIPTION

Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.

Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.

Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape

Technical data

Model No.	M4E-G500
Tank Volume	50L
Work Efficiency	14~40 hectare/ hours
Empty Weight	34.8KG
Standard Take Off Weight	98KG
Max Take Off Weight	105KG(Within 1,000 meters above sea level)
RTK/GNSS Frequency	RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5
Hover Accuracy	Horizontal: ±10 cm Vertical: ± 10 cm
Flying
Full payload Flying Time	8-10min
Max Flying Time	<20min
Flying Speed	0-8m/s
Flying Height	2000m
Landing approach	Vertical take-off and landing
Anti-wind	<7m/s
Positioning	GPS&RTK
Spraying
Spray droplet diameter	50-500μm
Quantity of Nozzles	4pcs
Recommend Spray Speed	6-8m/s
Spray Width	6-12M
Spray Height	2-4M above crop
Battery
Power Capacity	30000mAh-60.9V
Weight	13.2KG
Discharge Rate	5C
IP	IP67

Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

Main Features

Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

Automatic spraying mode

Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

Spraying system

Double water pumps generate bigger pressure , max 24L/min adjustable flow rate.

Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.

Obstacle avoidance sensor

Equip 360 degree omnidirectional obstacle avoidance radar makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose.

The GCS presents the distance from the obstacles at the same time.

Terrain following module

To make the drone has the ability to work on undulating crop field and make the spraying work much easier.

Single-axis FPV camera

Controllable pitch Angle ± 45 ° , necessary for aircraft operation!

Real time video monitoring let you know detail information of drone and your crop situation !

Dual Pump, High Precision Flowmeter

Maximum flow rate of a single pump 14L/ min. The accuracy of double tube flowmeter is less than 5%

Precheck and After-check

You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.

Details Images.
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

WHY CHOOSE US?
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

HOT SELLING PRODUCTS

COMPANY STRENGTH
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

EXHIBITION DISPLAY
Sprayer Drone Recommend Spray Speed 6-8m/S Spray Width 6-12m Dustproof Uav Waterproof Agricultural Sprayer Aircraft for Farming

FAQ

Q: 1.How to fly the drones?

A: There are operating manual and video to teach the operation. You can also come to our company for free training.

Q: 2.Are your drone waterproof?

A: Yes, the drone is waterproof.

Q: 3.Does your agriculture drone can set routes?

A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.

Q:4.What capacity drone do you have?

A:We have 5, 10 and 20kg payload.

Q:5.How many hectares can the drone can cover one day?

A:From 30-50 hectares, depends on the capacity.

Q:6.Can the drone spray the high trees?

A:Yes, we designed the fogger drone.

Q:7.Can the drone spray the fertilizers and seeds?

A:Yes. we designed the 20kg agriculture spreader drone.

Q:8.Does it have the FPV camera and light?

A:Yes.

Q: 9.Which flight controller do you use?

A: We have our own flight controller.

If still have some questions, please dont hesitate to contact me
